銳正青虹（TM） 鎢鋼單刃銑刀 （通用55系列）

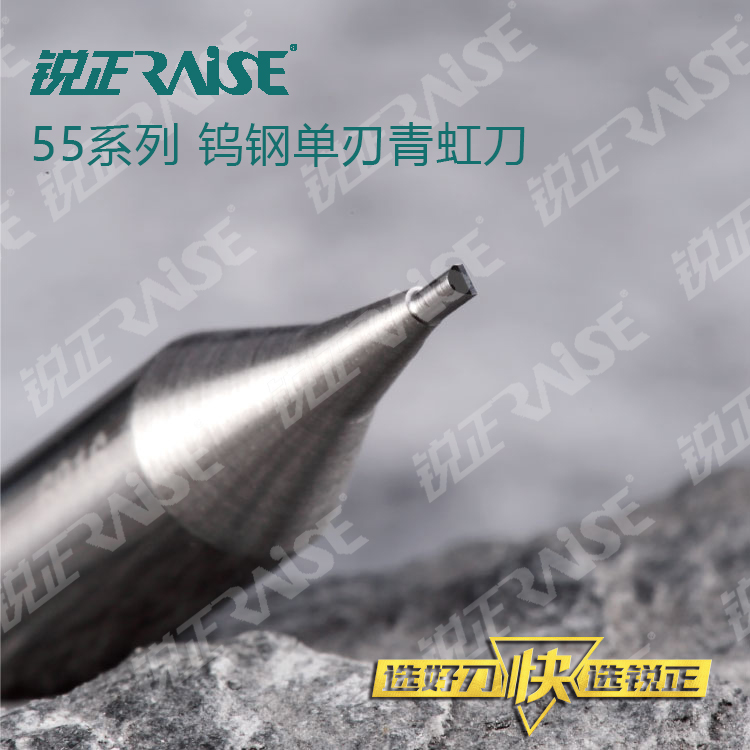

Carbide single-edge end mill cutter,   銳正青虹（TM） RAISE QIHONG (55 COMMON GRADE)

抗斷設計

Stronger teeth design to prevent broken

產品特點

1.       材料：全鎢鋼抗沖擊材料磨制而成，耐磨性好，抗沖擊性能好。

2.       工藝：3個維度加強刀尖剛性，剛性比螺旋槽強50%，抗斷性能好

3.       特性：刀刃鋒利，可以切削銅鑰匙，白銅鑰匙，鎳白銅鑰匙。

4.       優勢：適用于C級鎖芯多軌道鑰匙的加工，加工的鑰匙槽口光滑，沒有毛刺

Product Features

1.Material: It is made of solid carbide, the material is impact-resistant material, with good wear

resistance and good impact resistance.

2. Manufacturing process: It has patented design and three dimensions to enhance the rigidity of the tip, the rigidity is 50% stronger than the spiral groove end mill design, and not easily broken.

3.Features: Cutter edge is very sharp, can cut copper key, and nickel silver key.

4.Advantages: It is suitable for the processing of C-class lock cylinder multi-track key, which makes processed key slot smooth and no burr.

規格表

Specification

適用機型：

各種立式手動鑰匙機；如363, 333L, 339, 369, 368A&B, 398AC, 399AC, 369，368B,383AC,388AC,398AC,399AC, Q36,Q38,Q39,Q30,Q32,Q31

Suit for Machine:

various vertical manual key machines, such as 363, 333L, 339, 369, 368A&B, 398AC, 399AC, 369，368B,383AC,388AC,398AC,399AC, Q36,Q38,Q39,Q30,Q32,Q31

適合加工的鑰匙：

所有內銑槽鑰匙，特別適合加工C級鎖芯多軌道鑰匙.

Suit for processing keys: All internal milling Laser keys, automotivekeys, High Security keys , especially suitable for machining C-class lock cylinder multi-track keys.

對應的導針規格詳見5503

Corresponding tracer point specifications, refer to 5503

同樣功能， 55系列螺旋槽鋒利型，立銑刀，可參照5502

60系列高光4刃螺旋立銑刀，可參照6602

The same function size, 55 COMMON GRADE end mill cutter, refer to P-5502

60 UNIVERSAL GRADE High gloss grinding 4-flutes end mill cutter, refer to P-6602

注意事項：

Attention:

1）請選用正確規格的導針；

Please choose the Corresponding size tracer point；

2）刀尖伸出安裝孔的距離不要超過20mm；

The distance from the tip of cutter to the mounting hole should less than 20mm；

3）Gladaid和精準鑰匙機請選用特定規格的銑刀，詳情可咨詢RAISE的工程師

For GLADAID and MODERN key machines, please use a specific size end mill cutter. For details, please contact RAISE engineers.
